Microsoft Excel (XLSX)

In Excel, cells are laid out in rows and columns. What's more, there are layers of worksheets, with rows and columns on each. You do not read through them in a fixed order.

But in memoQ, segments come one after another. There is an order of segments you need to follow when you translate them.

When  you import an Excel workbook, memoQ needs to know how it should put the cells in order. There are four possibilities:

From the Direction of linearization drop-down box, choose the option you need. Normally, memoQ lists the cells from left to right and from top to bottom. This is the same order as you would read running text in a European script.

There are certain parts of an Excel workbook that memoQ can import or ignore. Although you can include or exclude ranges of cells, some parts are easier to include or exclude by their type. Here are the options you have:

• Import sheet labels at the beginning of document: Normally, memoQ imports the names of each worksheet in the workbook. The names will appear at the beginning of the document. To ignore sheet labels: Clear this check box.
• Try correcting references containing translated text: In the workbook, default sheet names may be used in various translated forms. Normally, memoQ tries to match the different translated sheet names to each other. To leave these references as they are: Clear this check box.
• Import header and footer texts: A workbook or a worksheet may have a header and a footer. These are not cells; they are outside the table. Normally, memoQ imports these for translation. To skip them: Clear this check box.
• Import text from charts and text boxes: An Excel workbook may contain charts and text boxes. These have text that are outside the cells (titles, axes labels, etc.). Normally, memoQ imports these for translation. To skip them: Clear this check box.
• Import alternative text of images: Normally, memoQ imports alternative text of images. If you do not want to translate them: Clear this check box.
• Skip hidden rows and columns: Normally, memoQ imports hidden text from a worksheet. If you don't want to translate them: Check this check box.
• Include hidden worksheets: An Excel workbook may contain entire worksheets that are hidden. Normally, memoQ doesn't import them. To import them: Check this check box.
• Include cells containing formulas: Normally, memoQ doesn't import cells that contain formulas. But sometimes the formulas may contain text that needs to be translated. To import the formulas for translation: Check this check box. Be careful with formulas: memoQ doesn't tag syntax elements, and it's easy to introduce errors in them.

A cell in Excel can contain line breaks. To insert a line break in Excel, press Alt+Enter.

Normally, memoQ starts a new segment when it finds a line break in a cell.

But in many projects, cells must stay one segment.

To keep the text in a cell together: Under General, check the Import linebreaks as inline tags check box. memoQ will include an inline tag for each line break.

You can specify ranges of cells in Excel that memoQ should import or ignore. You can list the cell ranges in the Excel style (for example, Sheet1!A1:B678).

But first, click one of these radio buttons to tell memoQ what should happen to the ranges:

• Do not import these ranges: Excludes the listed ranges from the import. Cells that fall in the ranges you list are not imported. memoQ imports all other cells.
• Import only these ranges: Imports the listed ranges only. memoQ limits the import to the cells that fall in the ranges on the list. Other cells will not be imported.

  Second, list the ranges. There are several ways to do that:

• Click Select ranges in Excel: Click this to open the workbook in Excel, and display the Mark selected ranges window. You can select the range in Excel, and then add the selection to memoQ.

  You need Excel for this: To do this, Microsoft Office Excel 2007 or higher must be installed on your computer. If it isn't, you need to enter the cell ranges manually, in the Excel format (for example, Sheet1!A1:B678).

  To learn more: See the topic about the Mark selected ranges window.

• Click Add range: Displays the Add range window. It has one text box only. Type the reference to the range in the Excel format: sheetname!upper_left_cell:lower_right_cell (example: Sheet1!A1:B678). Click OK.
• To change a range already on the list: Select the range in the list. Click Edit. The Add range window appears. Change the range, then click OK. Click Cancel or press Esc to return to the Document import settings window, and not change the range.
• To remove ranges from the list: Select the range you want to remove, and then click Remove. To remove all ranges: Click Remove all.

  To learn more: Here's a video about importing ranges from Excel.

You cannot run a chained (cascaded) filter after an Excel import if the imported text contains inline formatting. However, several content management systems return XLSX or Word documents this way.

If you need to run a HTML or an XML filter after the XLSX import, you can ignore inline formatting:

On the Importable ranges and general options tab, check the Ignore inline formatting tags in cascading import check box.

This check box appears only if another filter is chained after the Excel filter.

Caution: The formatting memoQ ignores will be missing from the exported document, too.

Each segment can have a comment. You can import comments from Excel.

For each cell that is imported for translation, there can be another cell that serves as its comment. It's relatively easy to import them in memoQ that way.

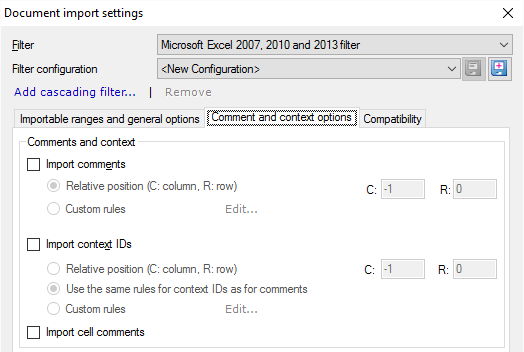

You can set this up in the Comment and context options tab of the Document import settings window:

To import other cells as the comment for a source cell:

1. Check the Import comments check box.

   Next, tell memoQ where the comment cells are. If they are always in the same row or in the same column: Specify how many cells away they are.

2. Click the Relative position (C: column, R: row) radio button.
3. In the C: box, type how many columns away the comment is.
4. In the R: box, type how many rows away the comment is.

• A negative number in C: means cells to the left of the imported cells. A positive number means cells to the right. Zero means the same column.
• A negative number in R: means cells above the imported cells. A positive number means cells below the imported cells. Zero means the same row.

  Examples:

• To import cells from A1 through A100, and get the comments from cells B1 through B100: Type 1 in C:, and 0 in R:.
• To import cells from A1 through Z1, and get the comments from cells A2 through Z2: Type 0 in C:, and 1 in R:.
• To translate cells in column B, and get the comments from column A: Type -1 in C:, and 0 in R:.

If you can't simply tell the relative position: Click Custom rules. Next to the radio button, click Edit. The Edit rules for ranges window appears. Set up the ranges there. To learn more: See the topic about the Edit rules for ranges window.

Excel can have comments, too: In Excel, each cell can have a comment (which is not in another cell). To import these comments as memoQ comments: Check the Import cell comments check box.

memoQ can give you context matches (101%) when the context of a segment is also there in the translation memory or in the LiveDocs corpus.

In running text, the context is the segment before and the segment after the current one.

But an Excel sheet is not running text. Most of the time, the context of the cell will be in another cell.

You can set this up in the Comment and context options tab of the Document import settings window:

To import other cells as the context for a source cell:

1. Check the Import context IDs check box.

   Next, tell memoQ where the comment cells are. If they are always in the same row or in the same column: Specify how many cells away they are.

2. Click the Relative position (C: column, R: row) radio button.
3. In the C: box, type how many columns away the context is.
4. In the R: box, type how many rows away the context is.

• A negative number in C: means cells to the left of the imported cells. A positive number means cells to the right. Zero means the same column.
• A negative number in R: means cells above the imported cells. A positive number means cells below the imported cells. Zero means the same row.

  Examples:

• To import cells from A1 through A100, and get the contexts from cells B1 through B100: Type 1 in C:, and 0 in R:
• To import cells from A1 through Z1, and get the contexts from cells A2 through Z2: Type 0 in C:, and 1 in R:.
• To translate cells in column B, and get the contexts from column A: Type -1 in C:, and 0 in R:.

If you can't simply tell the relative position: Click Custom rules. Next to the radio button, click Edit. The Edit rules for ranges window appears. Set up the ranges there. To learn more: See the topic about the Edit rules for ranges window.

Choose how memoQ should process documents that were saved in Microsoft Office versions that are newer than Office 2007 (that is, Office 2010 and up).

To set this up: Click the Compatibility tab.

Some parts of the workbooks are called extensions: For example, text boxes. In new versions of Office, these are saved in two variants: The content is there for the newest Office version. And there is another copy for compatibility reasons, to be read by Office 2007 or earlier versions.

You have three choices:
