Charts
How to get here
- Log in to memoQweb as an administrator or a project manager.
- On the left sidebar, click Analytics.
-

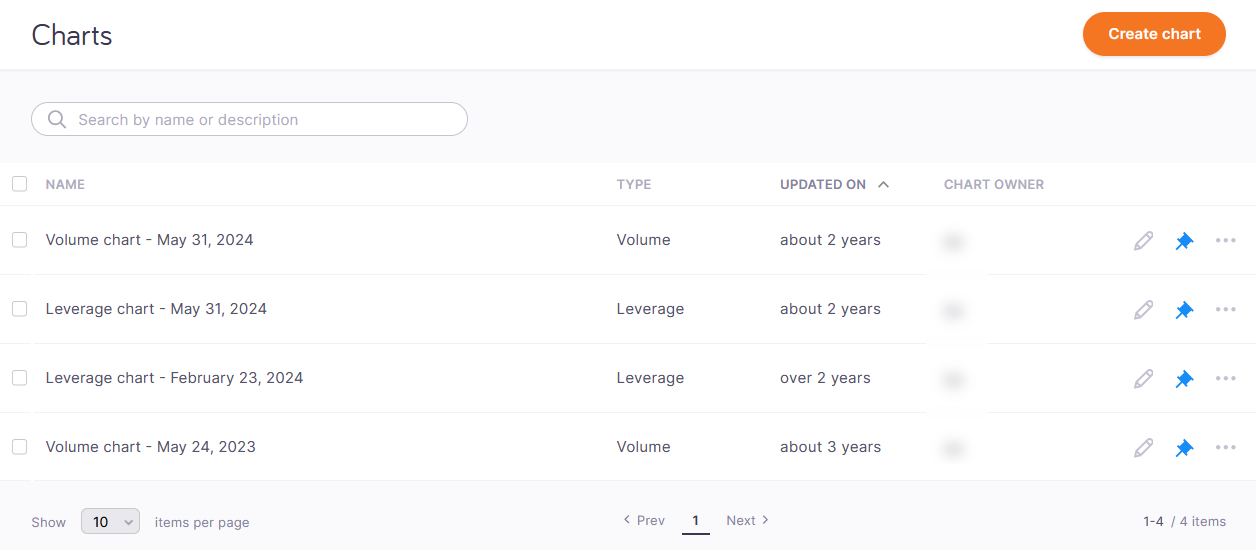

Under Analytics, click Charts. The Charts page opens.
What can you do?
Create or manage charts
-
View charts’ details - their name, type, when they were last updated, and information about the chart's owner.
-
Create a chart - in the top right corner, click the Create chart button. The Create chart page opens: Choose your data type (leverage or volume) and continue the chart creation process.
-
Search the list of charts - type a name or description into the search bar above the chart list. To confirm: Press Enter.
To clear the search bar, click the X icon.
-
Sort chart list – select a column you want to sort and click its header. To reverse the sorting order, click the same column header again.
-
Pin to dashboard – depending on how many charts you want to pin to the dashboard:
-
One chart - at the end of the chart's row, click the Pin to dashboard
icon. The icon will change its color to blue. You can also select the checkbox next to the chart's name, and above the list, click the Pin to dashboard link. -
Two or more charts - select their checkboxes, and above the list, click the Pin to dashboard link.
-
To remove a chart from the dashboard – at the end of the chart's row, click the blue Unpin from dashboard
icon. You can also select the checkbox next to the chart's name, and above the list, click the Unpin from dashboard link.
-
-
Edit chart – at the end of chart's row, click the Edit
icon. -
Duplicate chart - at the end of the chart's row, click the Show more
icon. On the dropdown, click Duplicate
. The duplicated chart will be displayed above its original version, with the word “- Copy” added to its name. -
Delete chart – depending on how many charts you want to delete at once:
-
One chart - at the end of the chart's row, click the Show more
icon. On the dropdown, click Delete
. You can also select the checkbox next to the chart’s name, and above the list, click the Delete link. The Delete chart window opens: To remove the chart from the list, click the Delete chart button. To keep the chart: Click Cancel. -
Two or more charts - select their checkboxes, and above the list, click the Delete link. The Delete chart window opens: To remove charts from the list, click the Delete chart button. To keep the charts: Click Cancel.
-
Detect a Business analytics problem
When something goes wrong with Business analytics' background services, a red label appears next to the page's header. For example, on the Dashboard page, it looks like this:
